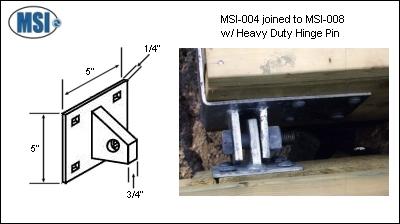

MSI-004 T-Hinge One Tab Male

·          Dimensions – 5” x 5” x 1/4"

·          Attaches to Dock using the MSI-002 Large Backer Plate

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Join Docks with MSI-005 or MSI-008 Connecting Hardware

·          Hot Dipped Galvanized Steel

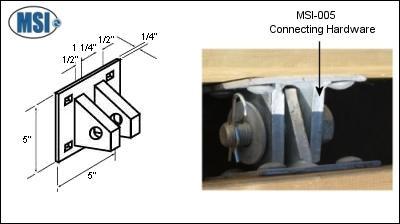

MSI-005 T-Hinge Two Tab Female

·          Dimensions – 5” x 5” x 1/4"

·          Attaches to Dock using the MSI-002 Large Backer Plate

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Join Docks with MSI-004 or MSI-007 Connecting Hardware

·          Hot Dipped Galvanized Steel

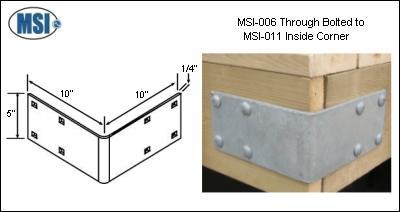

MSI-006 Corner Protection Plate

·          Dimensions – 5” x 10” x 1/4" per side

·          Attaches to Dock using the MSI-011 Inside Corner

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Protects the Dock Corners from Impact Damage

·          Hot Dipped Galvanized Steel

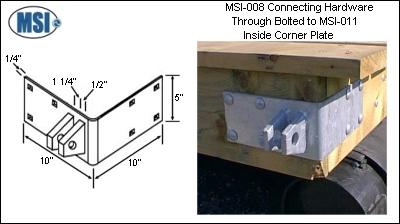

MSI-008  Corner Hinge Plate Two Tab Female

·          Dimensions – 5” x 10” x 10” x 1/4"

·          Attaches to Dock using the MSI-011 Inside Corner

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Join Docks with the MSI-004 or MSI-007 Connecting Hardware

·          Hot Dipped Galvanized Steel

MSI-011  Inside Corner Plate

·          Dimensions – 5” x 10” x 10” x 1/4"

·          Attaches to Dock using the MSI-006, MSI-007 or MSI-008

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Built in Slotted Key Chain Holder for easy Anchor Chain Adjustment

·          Hot Dipped Galvanized Steel

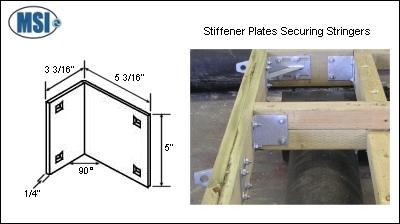

MSI-014  90 Degree Stiffener Plate

·          Dimensions – 5” x 3 3/16” x 5 3/16” x 1/4"

·          Attaches to Dock as a Stringer Stiffener

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Hot Dipped Galvanized Steel

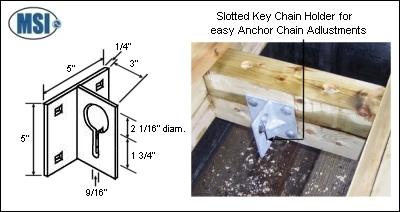

MSI-016  Key Hole Chain Holder

·          Dimensions – 5” x 5” x 3” x 1/4"

·          Attaches to Dock using the MSI-002 Large Backer Plate

·          Through Bolted with 1/2” Galvanized Carriage Bolts

·          Slotted Key Chain Holder for easy Anchor Chain Adjustment

·          Hot Dipped Galvanized Steel

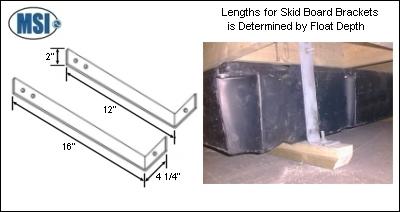

MSI-020 & 021 Skid Board Brackets

·          Dimensions – vary based on Float Depth

·          Attaches to Dock with 1/2” Galvanized Carriage Bolts

·          Protects the Floats from Damage during Installation and Removal

·          Hot Dipped Galvanized Steel
